LCD Monitors :: Monitor Arm :: Ergotron LX Dual Desk Mount Arm (black)

Ergotron LX Dual Desk Mount Arm (black)

Description
Attachments
Send to friend
Features
Tags

Make the most of your workspace. Use this ingenious tool with your notebook and an external LCD or with two LCDs. Create a productive side-by-side configuration that lifts screens up to where they're easier to see while reclaiming valuable worksurface.

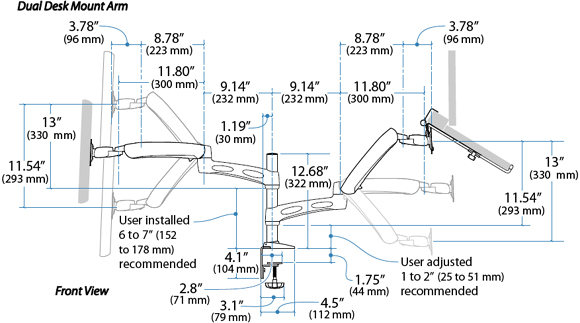

Dimensional Diagram for Ergotron LX Dual Desk Mount Arm

Dimensional Diagram for Ergotron LX Dual Desk Mount Arm

Technical Specifications:

LCD Size

Wt. Capacity

Lift

Tilt

Pan

Rotation

VESA

up to 20"

up to 51cm

See Below

13"

33 cm

80 degree

360 degree

90 degree P/L

MIS-D

Product Information:

Part Number:	28-512-195
Description:	LX Dual Desk Mount Arm (Black)
Includes:	Desk clamp and grommet mount Pole Two (2) LCD arms One (1) notebook tray Notebook fastening kit (you choose: Velcro, non-slip pad or clips) Two (2) 75 mm to 100 mm VESA adapter plates
Desk clamp:	Attaches to edge 1/2" to 1-7/8" (12 - 47 mm) thick, grommet mount attaches through hole 5/16" to 2" (7 - 51 mm) wide and up to 2-1/2" (63 mm) thick
Weight Capacity:	Maximum individual LCD weight = 20 lbs (9 kg), notebook weight range = 2.5 - 12 lbs (1.1 - 5.4 kg), maximum combined weight with grommet mount = 40 lbs (18 kg), maximum combined weight with clamp = 20 lbs (9 kg)
Monitor depth:	Greater than 2" (5 cm) may diminish capacity.
Mounting Standards:	VESA FDMI, MIS-D, 100/75, C (hole pattern: 100 x 100 mm (3.937" x 3.937") and 75 x 75 mm (2.952" x 2.952"))
Shipping Dimensions:	18.1" x 16.6" x 6.0" (459 x 422 x 153 mm)
Shipping Weight:	24 lbs (10.9 kg)
Warranty:	Five (5) years
